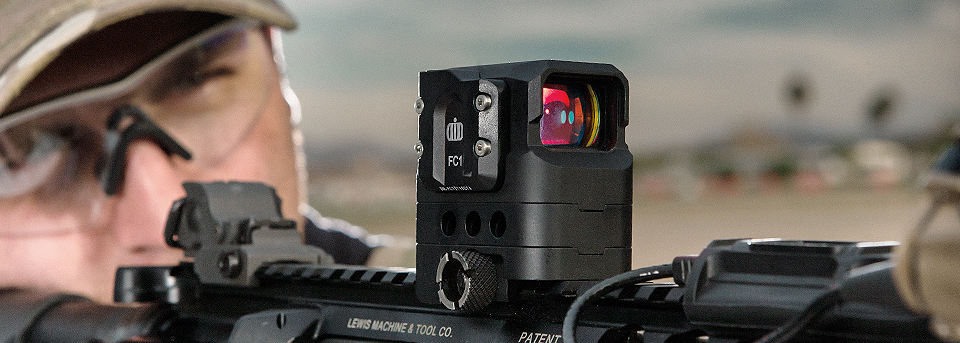

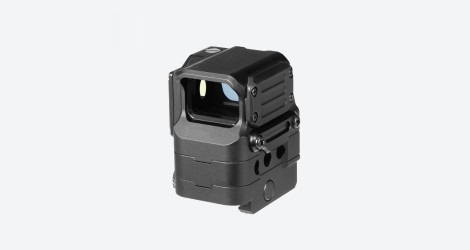

DI Optical’s compact FC1 parallax free prism gun-sight weights just 4.2 oz. and offers full features in a lightweight package. The retangular 17mm x 23mm lens with a proprietary multi-layer anti-reflective coating provides an exceptionally well defined red dot without ghost image, flare, reflection, or blurriness.
Housed in a rugged case CNC machined from a solid block of 6061-T6 aircraft grade aluminum, the FC1 is unsurpassed in rugged construction. The single, easy to use push button selects between 7 daytime and 7 night vision compatible modes. The FC1 mounts on standard a MIL-STD 1913 rail, or it can be used with an optional lever operated quick disconnect mount.
Excellent size for carbines, sub-machineguns, and shotguns
Goes to stand-By mode after 4 Hrs of no movement
Compact and rugged CNC machined aluminum housing
Requires only 1.5 inches of rail space
Compatible with optional A.R.M.S. detachable mount
Single CR2032 battery
highest quality and reliability
Submersible to 30 ft.
|OPTIC TYPE||Parallax free prism|
|OVERALL DIMENSIONS||48 x 34 x 40 mm (L x W x H)|
|RETICLE SIZE||2 ~ 3 MOA|
|STORAGE TEMP RANGE||-41° ~ 71° C, (-42° ~ 160° F)|
|SWITCH||SINGLE Push Button|
|ADJUSTMENT RANGE||150 CLICKS|
|LENS DIMENSIONS||17mm x 23mm|
|WEIGHT||119 g (4.2 Oz)|
|BRIGHTNESS SETTINGS||14 ( 7 daylight, 7 night vision)|
|OPERATING TEMP RANGE||-32° ~ 71° C, (-25.6° ~ 160° F)|
|ADJUSTMENT PER CLICK||1 MOA @ 100 Meters|
